Export Results

Export Results function under File menu can be used to export the useful simulated toolpath and error data by users.

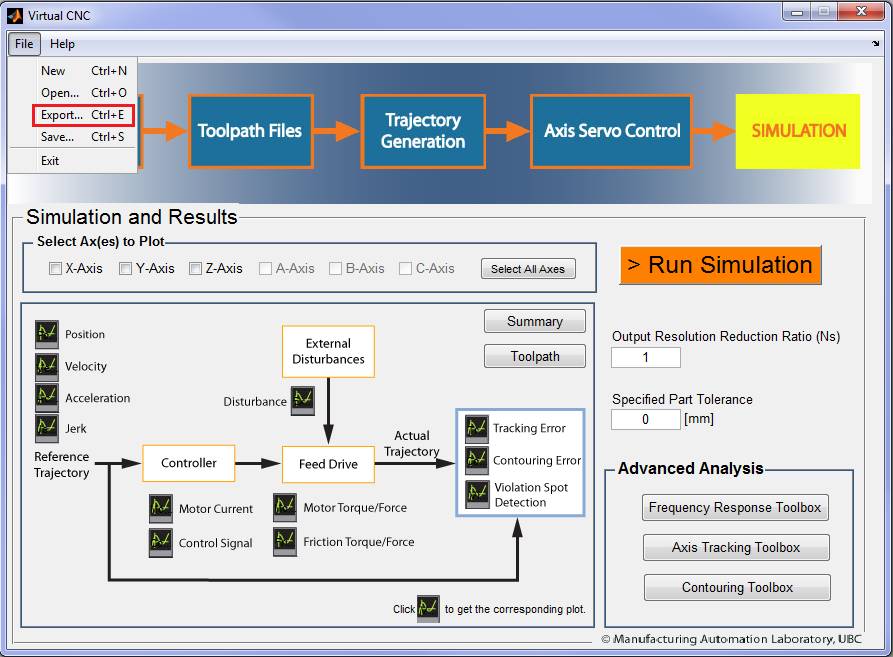

After simulation you can export the simulated results including the tracking error and contour error by clicking the File menu and selecting Export to open the interface of exporting results.

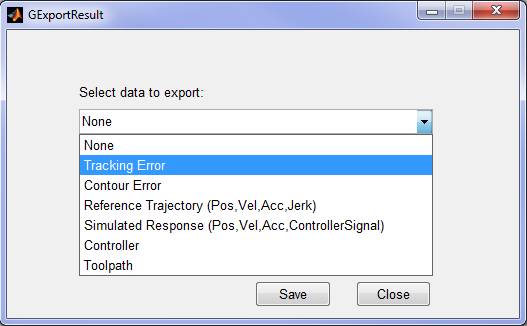

You can select different types of data to export by clicking the pop-up menu. Select the data first, which includes Tracking Error, Contour Error, Reference Trajectory, Simulated Response, Controller and Toolpath. The data file can be an Excel (.xls) file or MATLAB (.mat) file.

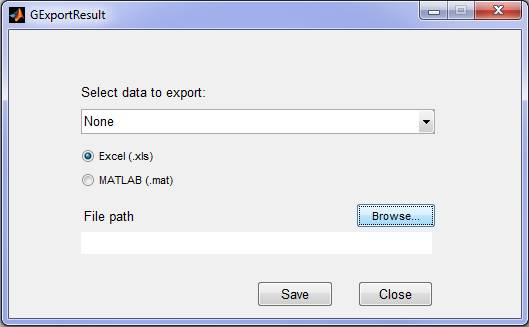

Then click the Browse button to choose a file path as the directory and enter the file name in the text box.

You can save the results to the directory you have defined before by clicking the Save button.
