MAL will assist all customers with hardware selection prior to purchasing.
This ensures that the correct instruments are being used for the desired application(s).

Note: MAL does not resell standalone hardware. We are a software company which utilizes the following hardware with our software. If you are interested in the following hardware and are not our customer, please refer to an official distributor or re-seller.

• Data Acquisition Cards

• Modal Impact Hammers

• Accelerometers

• Microphones

• Cables & Accessories

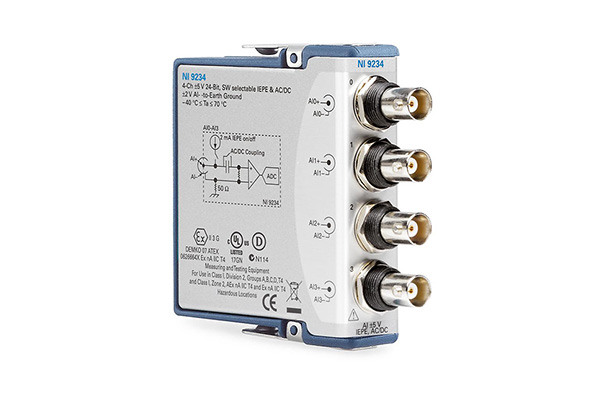

NI 9234

4 Channel DAQ

Machining Applications:

• Recording cutting sounds
• Recording cutting forces
• Modal analysis

Specifications:

• 4 Channel
• ±5 V
• 24-Bit Software-Selectable IEPE
• AC/DC Analog Input Module

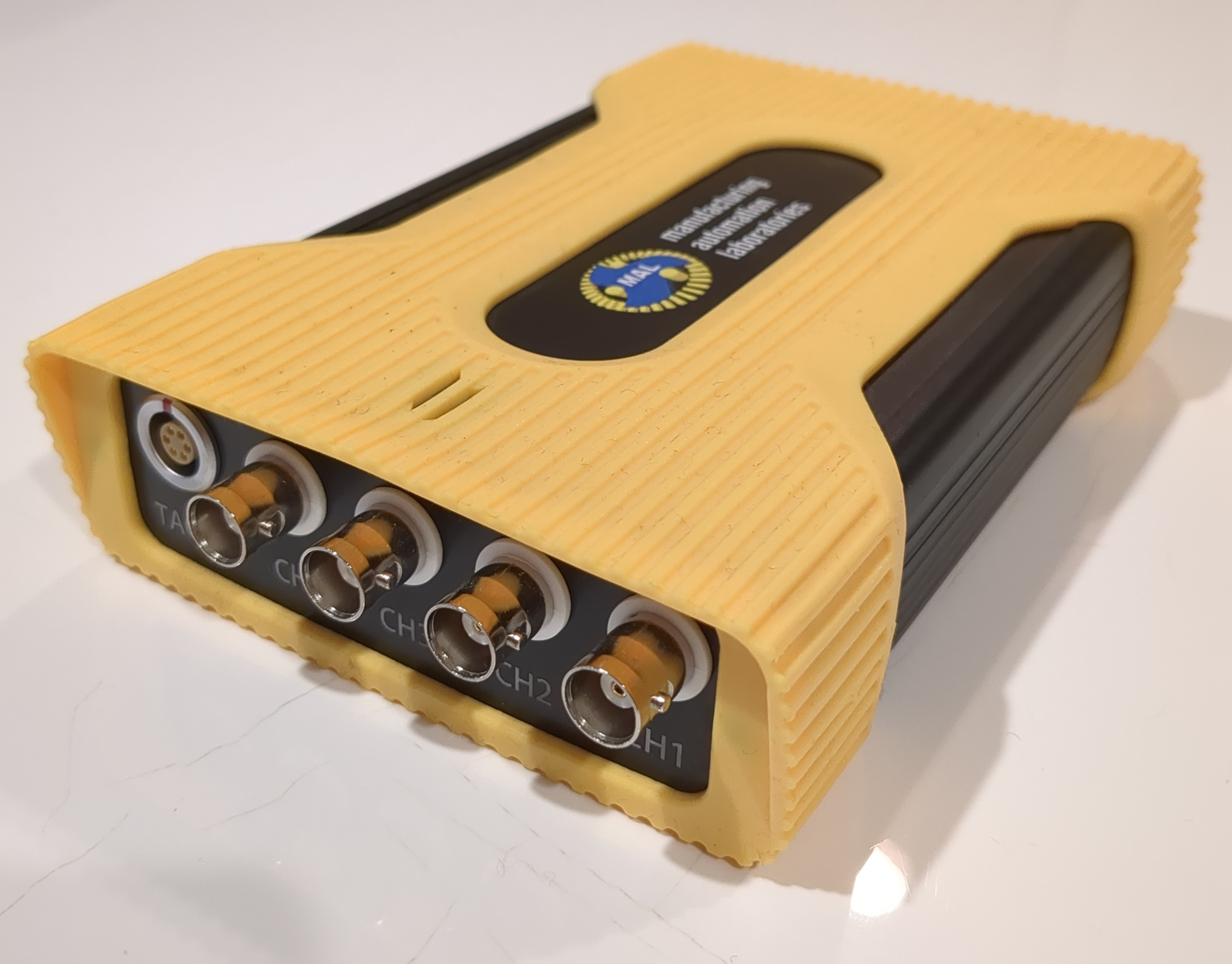

G-TECH Novian S04

4 Channel DAQ



Machining Applications:

• Recording cutting sounds
• Recording cutting forces
• Modal analysis

Specifications:

• 4 Channel
• ±5 V
• 24-Bit Software-Selectable IEPE
• AC/DC Analog Input Module
• Tachometer

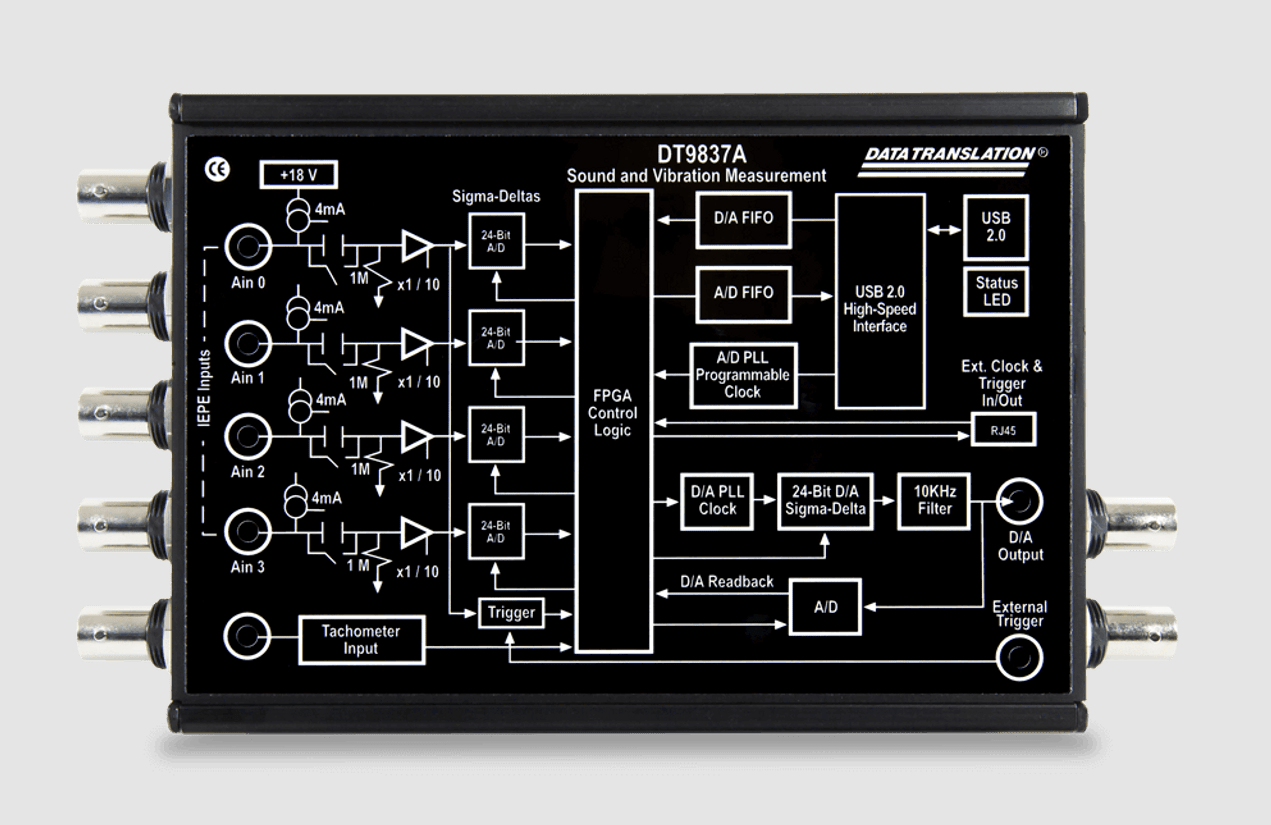

DT9837A

4 Channel DAQ



Machining Applications:

• Recording cutting sounds
• Recording cutting forces
• Modal analysis

Specifications:

• 4 Channel
• ±5 V
• 24-Bit Software-Selectable IEPE
• AC/DC Analog Input Module
• Tachometer

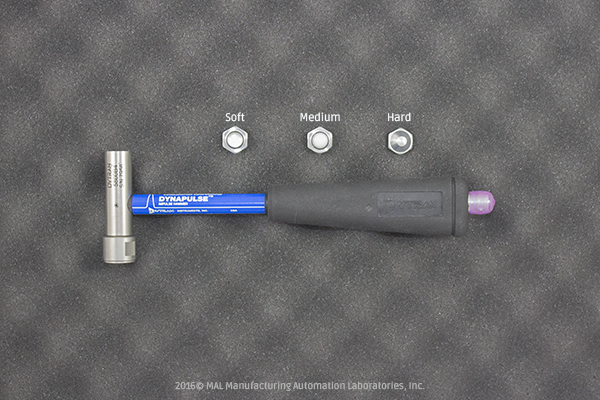

Dytran 5800B4

Dynapulse™ Impulse Hammer

Machining Applications:

• FRF measurement of tool/spindle setup
• FRF measurement of workpiece structures
• Tool diameters above 10mm

Specifications:

• 10 mV/lbf sensitivity
• 500 lbf range
• 1,000 lbf maximum force
• 100 gram head weight

Read More

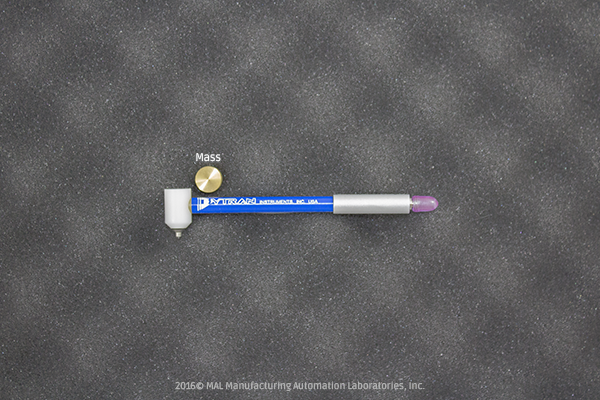

Dytran 5800SL

Ultra Miniature Impulse Hammer

Machining Applications:

• FRF measurement of cutting tool
• FRF measurement of thin workpiece structures
• Tool diameters below 10mm

Specifications:

• 100 mV/lbf sensitivity
• 50 lbf range
• 75 lbf maximum force
• 2 gram head weight

Read More

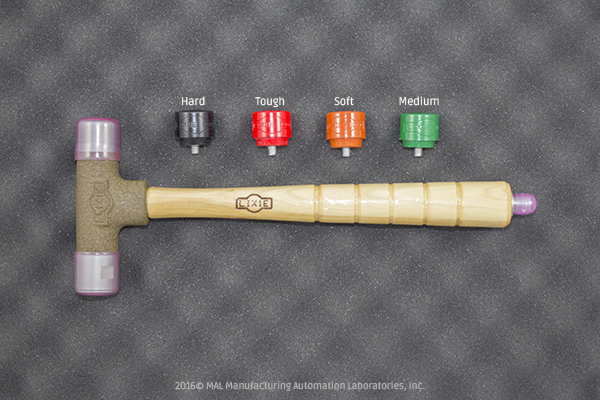

Dytran 5805A

Impulse Sledge Hammer

Machining Applications:

• FRF measurement of machine components
• FRF measurement of massive workpiece structures
• Measurement of cutting tools used in hard material machining
• Large tool diameters which excite low frequencies

Specifications:

• 1 mV/lbf sensitivity
• 5,000 lbf range
• 10,000 lbf maximum force
• 1 pound head weight (453.6 grams)

Read More

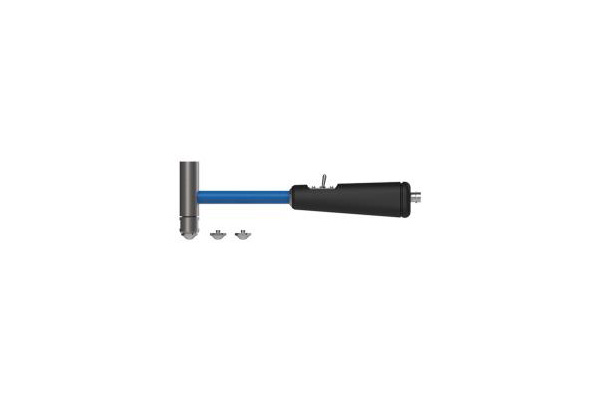

Dytran 5850B

Three Range Dynapulse™ Impulse Hammer

Machining Applications:

• FRF measurement of tool/spindle setup
• FRF measurement of workpiece structures
• Tool diameters above 10mm

Specifications:

• Sensitivity of 1, 10 or 100 mV/lbf
• Range of 50, 500 or 5,000 lbf
• Max. force between 1,000 – 8,000 lbf
• 150 gram head weight

Read More

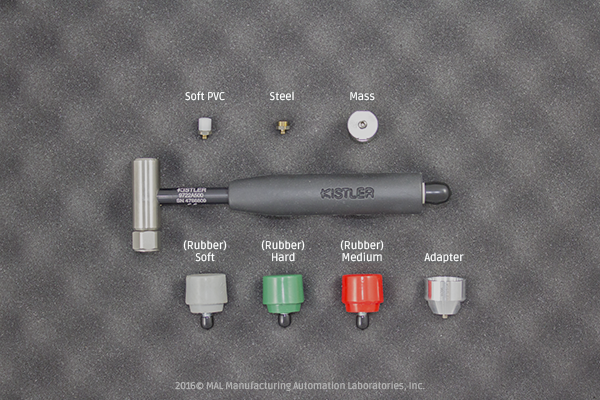

Kistler 9722A500

Impulse Force Hammer; Low Force Range

Machining Applications:

• FRF measurement of tool/spindle setup
• FRF measurement of workpiece structures
• Tool diameters above 10mm

Specifications:

• 50 mV/lbf sensitivity
• 100 lbf range
• 500 lbf maximum force
• 100 gram head weight

Read More

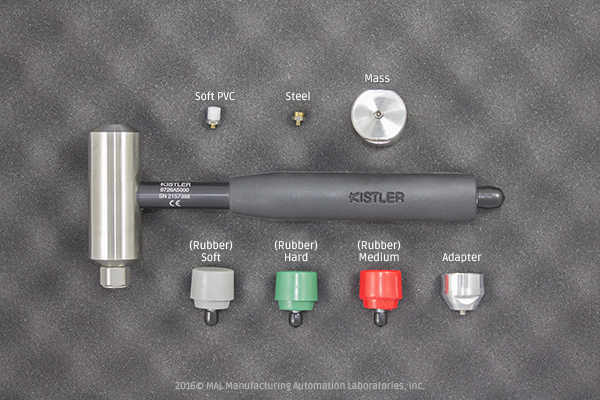

Kistler 9726A5000

Impulse Force Hammer; High Force Range

Machining Applications:

• FRF measurement of tool/spindle setup
• FRF measurement of workpiece structures
• Tool diameters above 10mm

Specifications:

• 5 mV/lbf sensitivity
• 1000 lbf range
• 2500 lbf maximum force
• 500 gram head weight

Read More

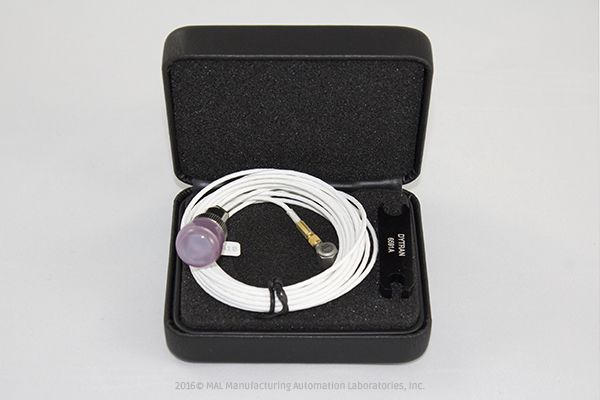

Dytran 3035B1G

Miniature Accelerometer

Machining Applications:

• Modal and structural analysis of small objects
• Product response testing
• General purpose vibration measurements where mass loading is a concern

Specifications:

• 10 mV/g sensitivity
• 0.5 to 10,000 Hz (±5%)
• 2.5 grams

Read More

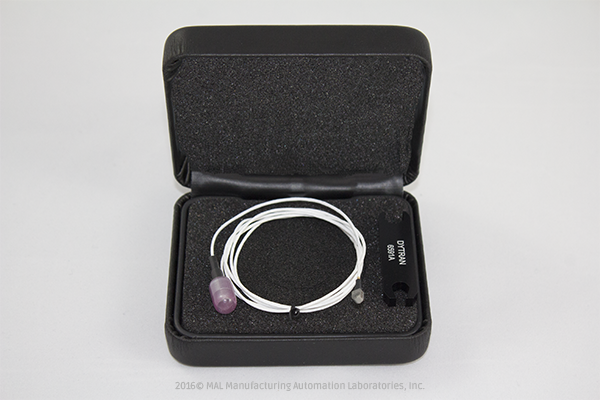

Dytran 3224A1

Miniature Accelerometer

Machining Applications:

• Modal and structural analysis of small objects
• Product response testing
• General purpose vibration measurements where mass loading is a concern

Specifications:

• 10 mV/g sensitivity
• 0.3 to 20,000 Hz (±5%)
• 0.2 grams

Read More

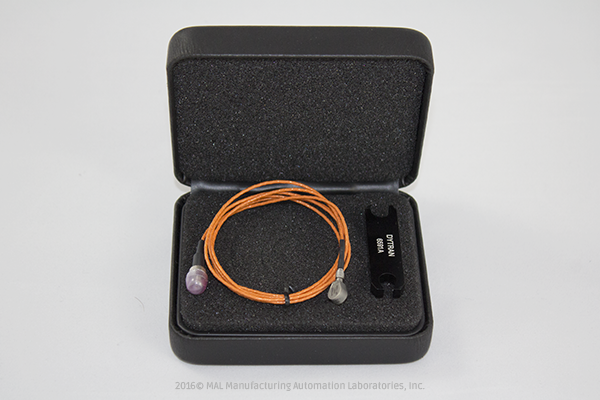

Dytran 3225F1

Miniature Accelerometer

Machining Applications:

• Modal and structural analysis of small objects
• Product response testing
• General purpose vibration measurements where mass loading is a concern

Specifications:

• 10 mV/g sensitivity
• 1.6 to 10,000 Hz (±10%)
• 0.6 grams

Read More

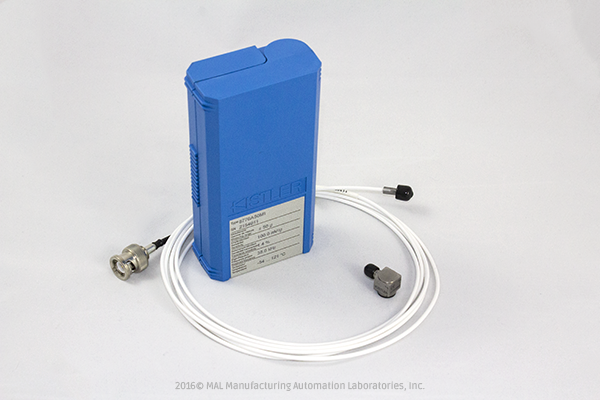

Kistler 8776A50

Miniature Accelerometer

Machining Applications:

• Modal and structural analysis of small objects
• Product response testing
• General purpose vibration measurements where mass loading is a concern

Specifications:

• 100 mV/g sensitivity
• 1 to 7,000 Hz (±10%)
• 4 grams

Read More

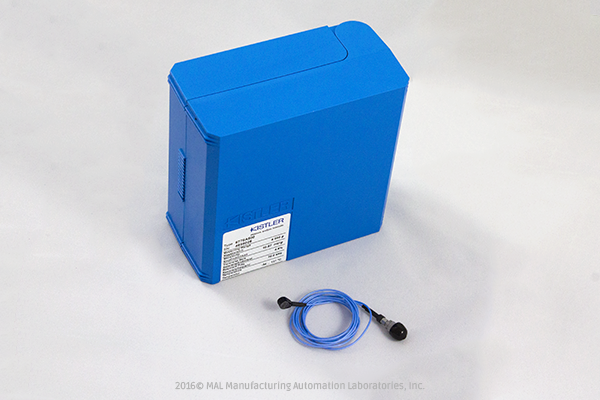

Kistler 8778A500

Ultra Miniature Accelerometer

Machining Applications:

• Modal and structural analysis of very small objects
• Product response testing
• General purpose vibration measurements where mass loading is a concern

Specifications:

• 10 mV/g sensitivity
• 2 to 9,000 Hz (±5%)
• 0.4 grams

Read More

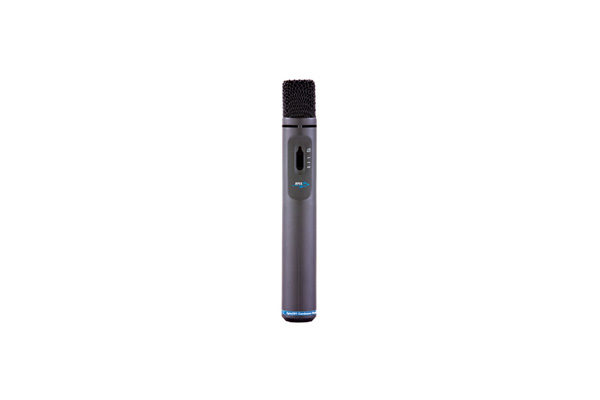

Apex591

Multi-Purpose Cardioid Condenser

Applications:

• Used to record machining sounds for further analysis
• General all-purpose microphone

Specifications:

• Frequency Response: 40Hz – 20kHz
• Sensitivity: 42dB ± 3dB re 1V/Pa @ 1kHz
• Impedance: 200 Ω
• Equivalent Noise Level: 21dB SPL (A-weighted per IEC651)
• Max SPL: 142 (@ 1kHz, 1% THD into 1k Ohm load)
• Controls: High Pass Filter (-12dB/Octave @ 80Hz), Three Position Pad (0, -10dB, -20dB)
• Connection: XLR-M
• Dimensions: 8.94 x 1.32 in / 227 x 33.5 mm
• Weight: 17.3 oz / 490 g
• Power supply: 9-Volt Battery or Phantom Powered
• Package Includes Nylon Carry Bag, Deluxe Microphone Clip

Read More

The following components are included in the MAL Inc. hardware sets:



• BNC cables

• Adhesive wax for accelerometer mounting

• Connection adapters

• Hammer tips

• Hammer masses

NOTE: Specifications and Datasheet PDFs were retrieved from OEM websites on June 2nd, 2014
