Linear Servo Motor Configuration

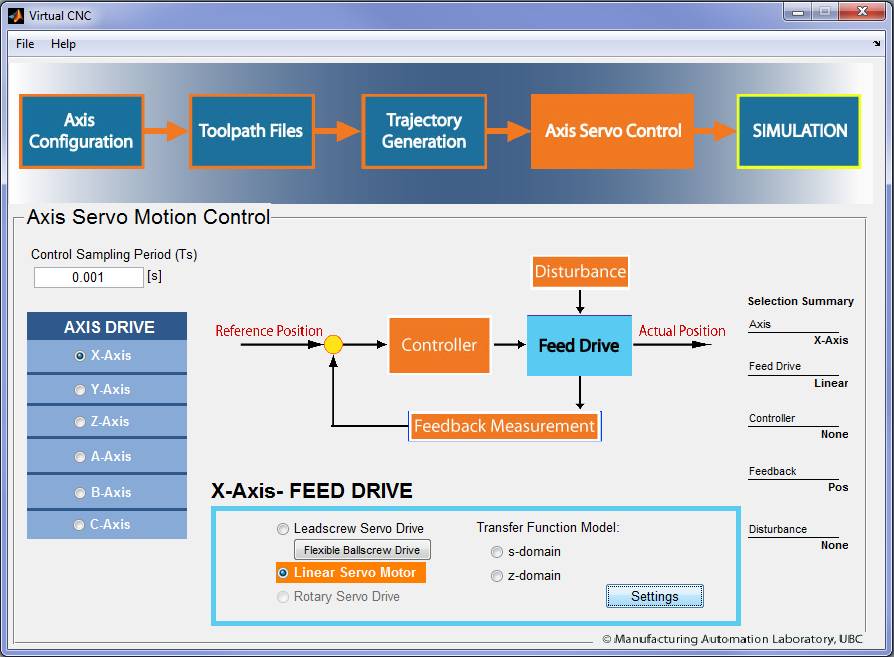

Click the Feed Drive icon in the Axis Servo Drive module, and when the Feed Drive icon is highlighting, select the Linear Servo Motor radial button and click the Settings button.

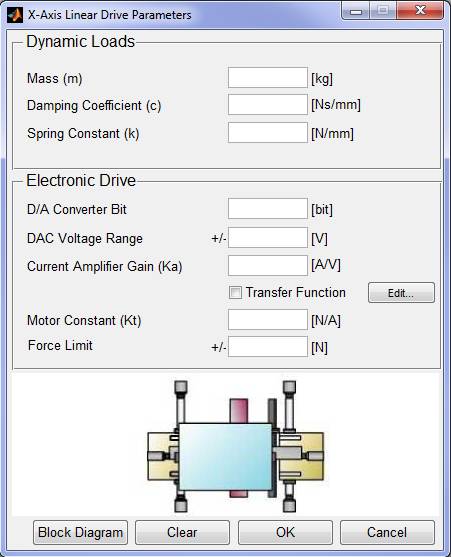

This opens the interface of Linear Drive Parameters.

Two sections of the parameters for the linear motor drive should be set up properly: Dynamic Loads and Electronic Drive.

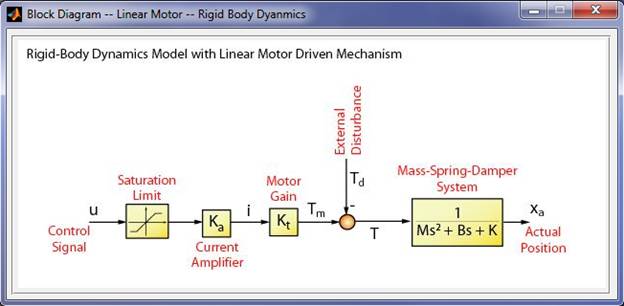

By clicking the Block Diagram button on the bottom you can see the block diagram structure of Rigid-Body Dynamics Model with Linear Motor Driven mechanism.
